Product introduction:

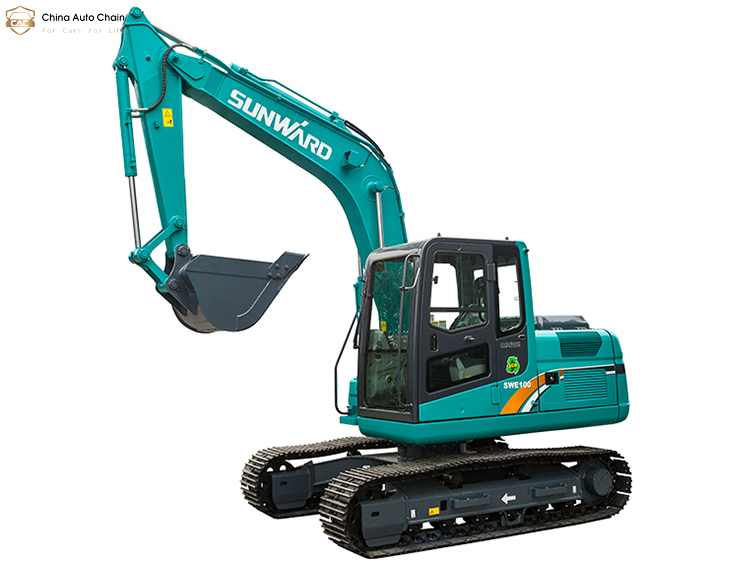

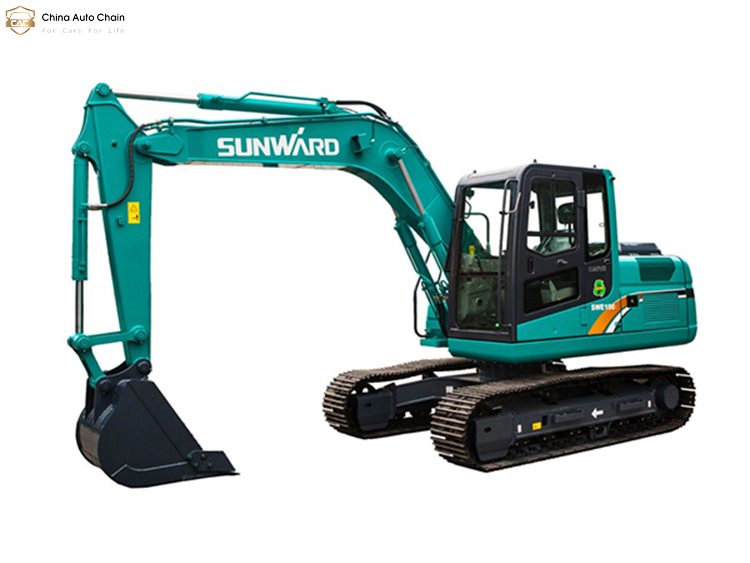

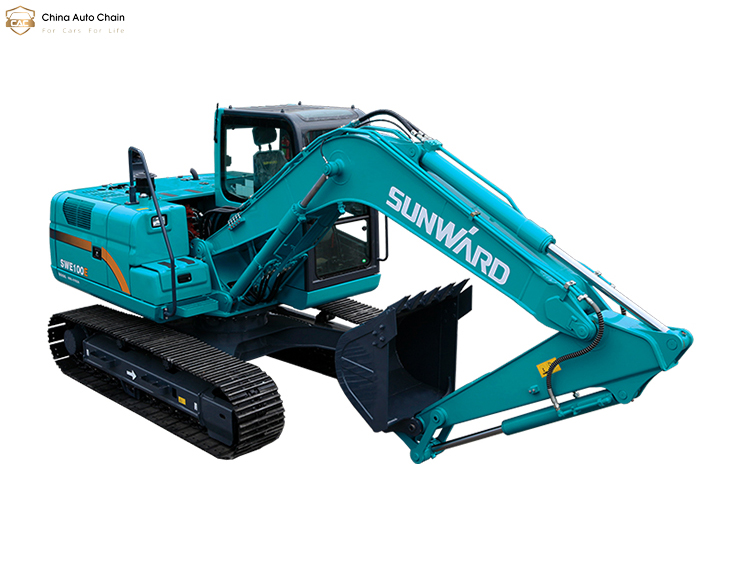

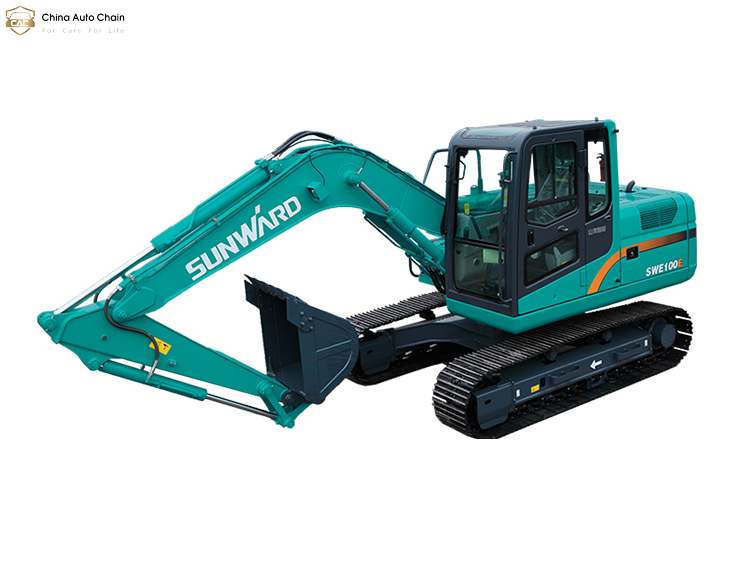

SUNWARD SWE100E Hydraulic Excavator


Inspection Report

SUNWARD SWE100E Hydraulic Excavator

  • ◆ Extended chassis, industry-leading stability, heavy-duty four-wheel belt, higher reliability.
    ◆ Leading operation range at the same level, large operation area and higher work efficiency.
    ◆ Modeling, layout and manufacturing process of medium-sized excavator.
    ◆ The new generation hydraulic system has the advantages of small pressure loss, high efficiency and low fuel consumption.
    ◆ Centralized maintenance, centralized lubrication, ground maintenance and maintenance are more convenient.

    Model: SWE100E
    Working load:9200kg
    Bucket capacity: 0.4m^3
    Brand: KUBOTA
    Model: V3800-DI-ET09
    Rated output: 60.7/2200kw/rpm
    Movable arm length: 3900mm
    Bucket arm length: 1950mm
    Bucket arm excavation power: 43kN
    Bucket excavation power: 64.5kN
    Moving speed(hight/low): 4.5km/h / 2.7km/h
    Turing speed: 9rpm
    Fuel tank capacity: 145L
    Hydraulic oil tank capacity: 120L

    A: Transportation length 6470mm
    B: Transportation height 2660mm
    C: Total width 2320mm
    D: Counterweight height above ground 845mm
    E: Minimum height above ground 370mm
    F: Tail radius of turn 1870mm
    G: Track grounding length 2560mm
    H: Track length 3225mm
    I: Caterpillar track 1870mm
    J: Track width 2320mm
    K: Width of track board 450mm
    L: Bridge height 2660mm
    M: Width of the turntable plate 2250mm

    A: Maximum excavation height 7515mm
    B: Maximum unloading height 5315mm
    C: Maximum excavation depth 4372mm
    D: Maximum vertical digging depth 3930mm
    E: Maximum excavation radius 6950mm
    F: Maximum excavation radius of the ground 6800mm
    G: Minimum radius of turn 2250mm
